Military Stealth Aircraft

B1   B2   F-117   F-22   Area-51

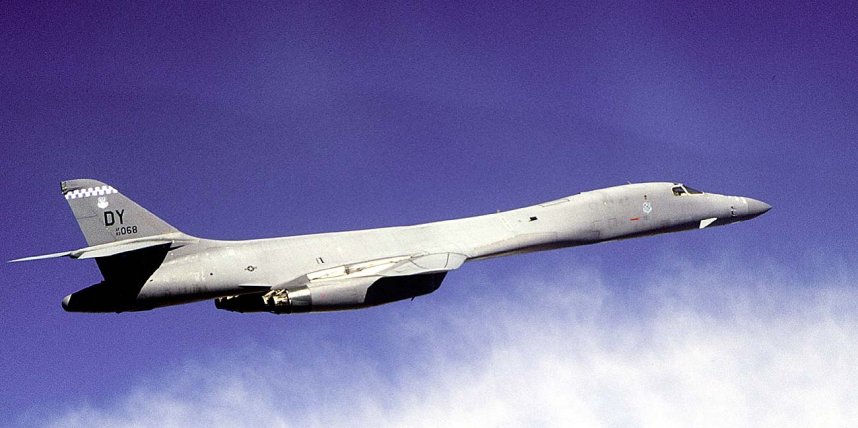

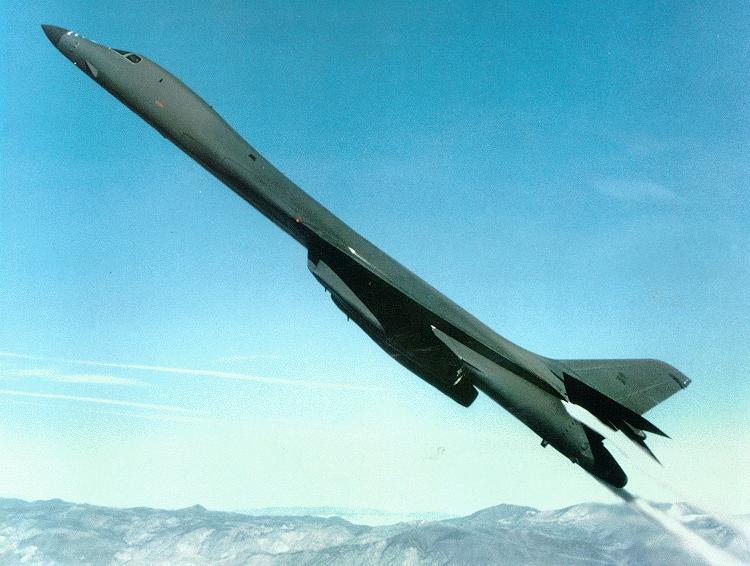

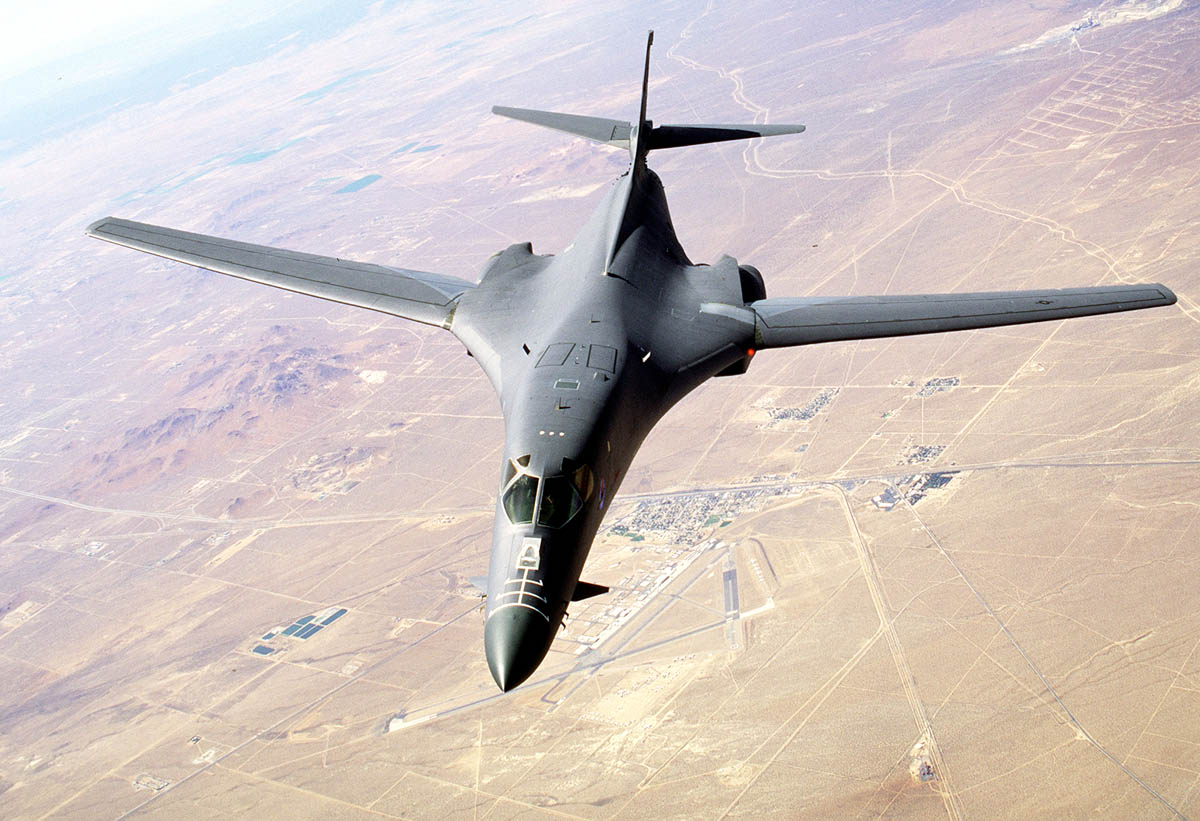

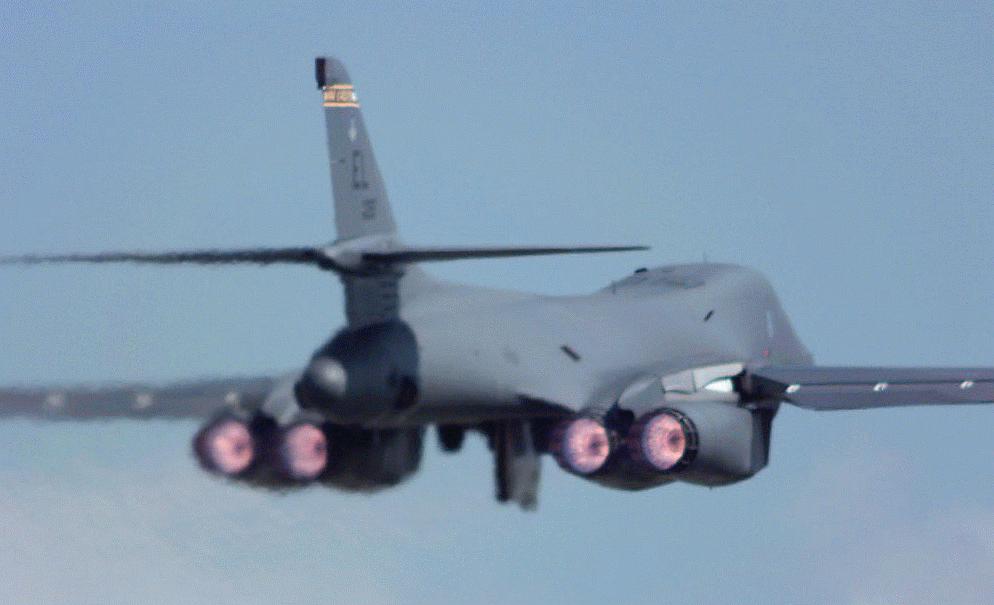

The B-1 is a long-range strategic bomber with a distinctive streamlined shape. It was originally designed to deliver nuclear weapons to targets in defended Soviet airspace, but can carry a variety of conventional arms as well.

B1-B Lancer


Primary function: Long-range, multi-role, heavy bomber

Builder: Boeing, North America (formerly Rockwell)

Speed: 900+ mph (mach 1.2)

Armament: Short-range attack missiles, bombs and cruise missiles

Crew: Four (aircraft commander, copilot, offensive systems officer and defensive systems officer)

Power plant: Four General Electric F-101-GE-102 turbofan engine with afterburner

Thrust: 30,000-plus pounds with afterburner, per engine

Length: 146 feet (44.5 meters)

Wingspan: 137 feet (41.8 meters) extended forward, 79 feet (24.1 meters) swept aft

Height: 34 feet (10.4 meters)

Weight: Empty, approximately 190,000 pounds (86,183 kilograms)

Maximum Takeoff Weight: 477,000 pounds (216,634 kilograms)

Range: Intercontinental, unrefueled

Ceiling: More than 30,000 feet (9,144 meters)

Date Deployed: June 1985

Unit Cost: $283.1 million (fiscal 98 constant dollars)

Inventory: Active force, 51 primary mission aircraft inventory (72 actual), 2 (test); ANG, 18 PMAI (20 actual); Reserve, 0


Photosphoto1 photo2 photo3 photo4


B1-B Video

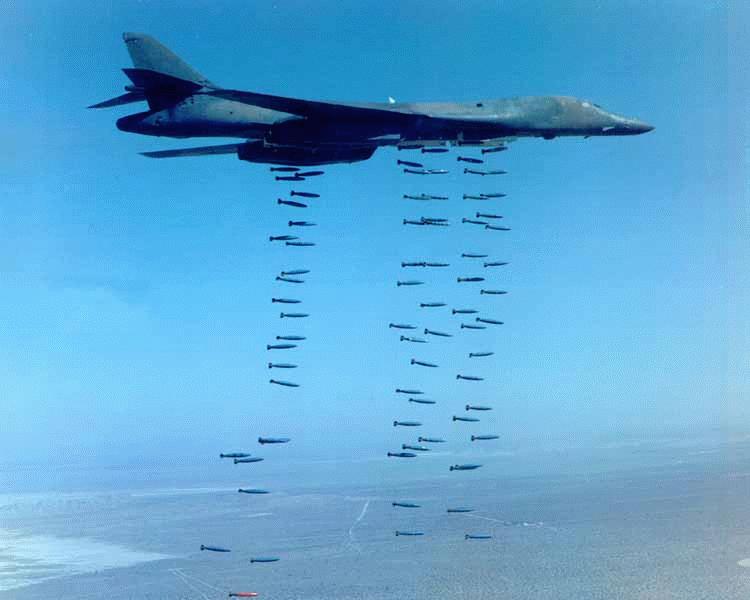

Armament: Three internal weapons bays can accommodate up to 84 Mk-82 general purpose bombs or Mk-62 naval mines, 30 CBU-87/89 cluster munitions or CBU-97 Sensor Fused Weapons and up to 24 GBU-31 JDAM GPS guided bombs or Mk-84 general purpose bombs (photos)

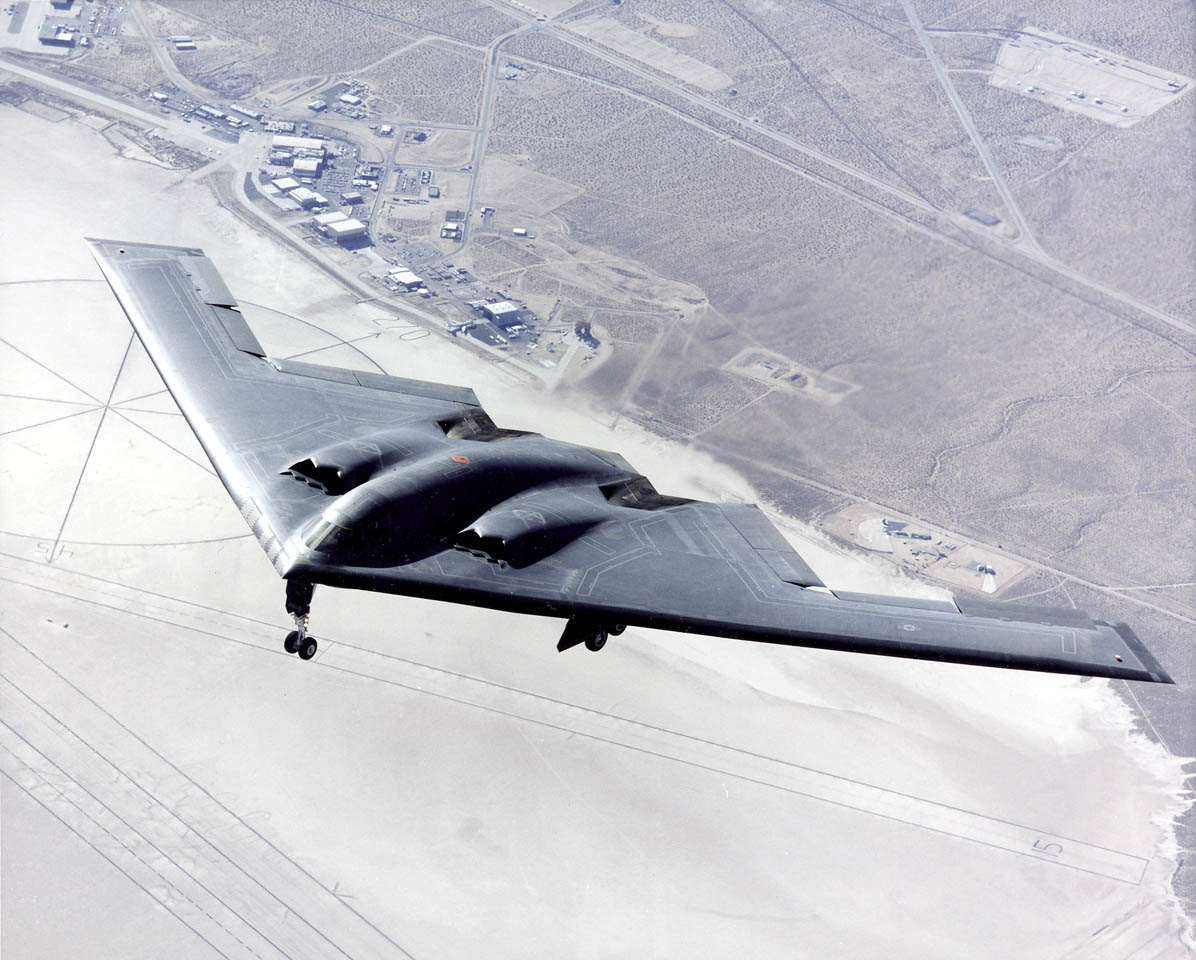

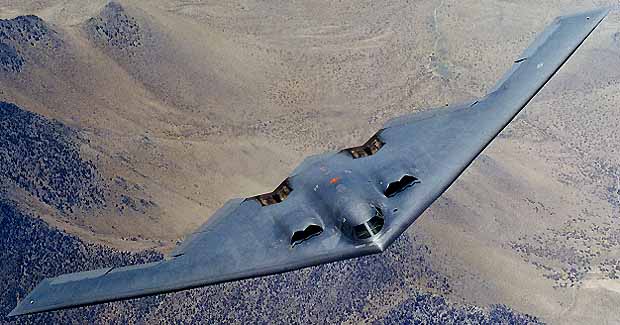

The B-2 Spirit is a multi-role bomber capable of delivering both conventional and nuclear munitions anywhere on the globe. Its "stealth" characteristics blend low-observable technologies with high aerodynamic efficiency and large payload, providing greater freedom of action at high altitudes. This increases its unrefueled range to approximately 6,000 nautical miles.

B-2 Spirit


Primary function: Multirole heavy bomber

Speed: High subsonic

Armament: Conventional or nuclear weapons
Crew: Two pilots

Prime Contractor: Northrop Grumman Corp.

Power Plant/Manufacturer: Four General Electric F-118-GE-100 engines

Thrust: 17,300 pounds each engine (7,847 kilograms)

Length: 69 feet (20.9 meters)

Height: 17 feet (5.1 meters)

Wingspan: 172 feet (52.12 meters)

Ceiling: 50,000 feet (15,152 meters)

Takeoff Weight (Typical): 336,500 pounds (152,635 kilograms)

Range: Intercontinental, unrefueled

Payload: 40,000 pounds (18,000 kilograms)

Crew: Two pilots

Unit cost: Approximately $2.1 billion [average]

Date Deployed: December 1993

Inventory: Active force: 21 (planned operational aircraft); ANG: 0; Reserve: 0




B2 Video



16 B61
16 B83
16 AGM-129 ACM
16 AGM-131 SRAM 2

80 MK82
16 MK84
34-36 CBU87
34-36 CBU89
34-36 CBU97

8 GBU 27
8 GBU 36
8 GBU 37
8-16 AGM-154 JSOW
8-16 AGM-137 TSSAM (references) (photos) (photos)

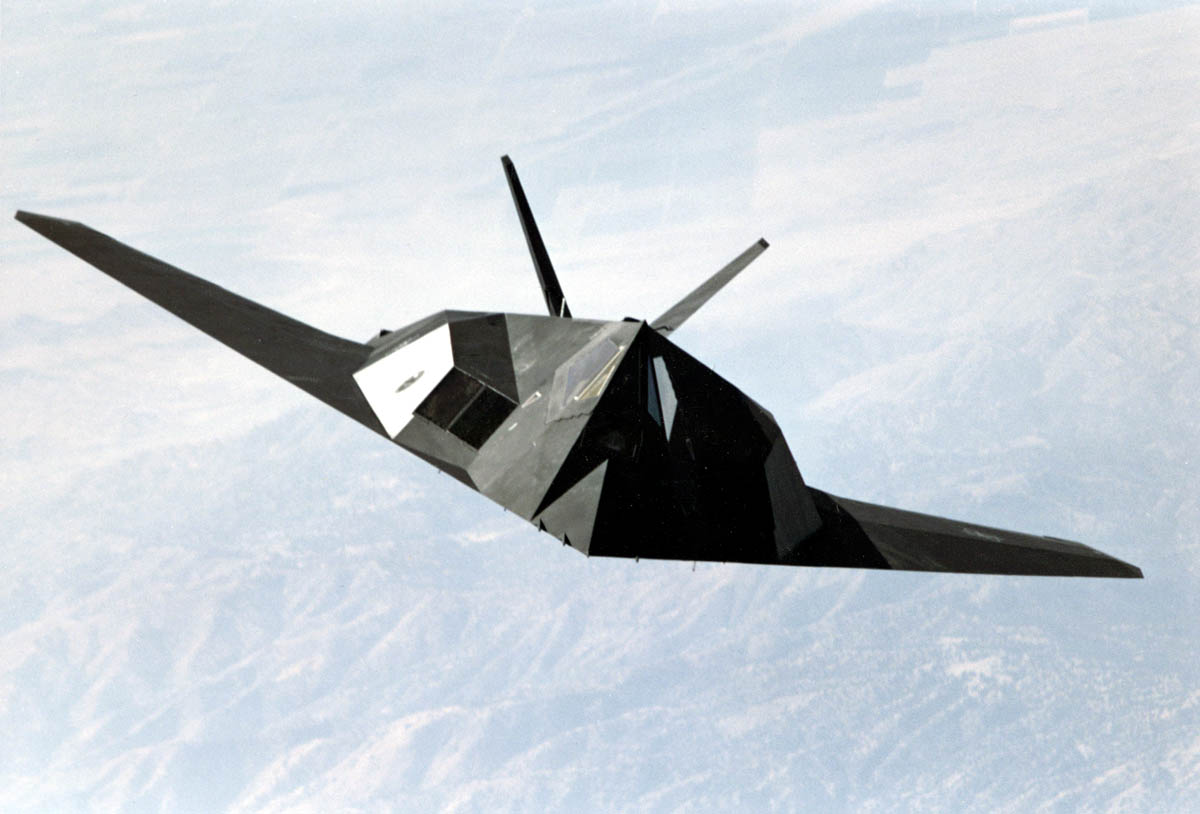

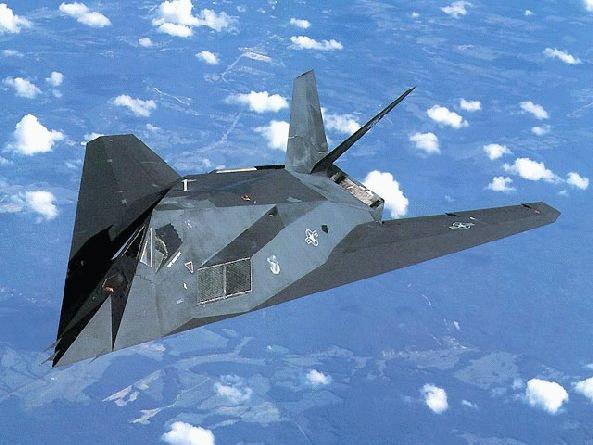

F-117 Nighthawk

Primary function: Fighter/attack

Speed: sub mach 1

Armament: Two each of:

2 MK84 2000-pound
2 GBU-10 Paveway II
2 GBU-12 Paveway II
2 GBU-27 Paveway III
2 BLU 109
2 Mark 61


Crew: one




F-117 Video



Primary Function



Lockheed Aeronautical Systems Co.

Power Plant

Two General Electric F404 engines


65 feet, 11 inches (20.3 meters)


12 feet, 5 inches (3.8 meters)


52,500 pounds (23,625 kilograms)


43 feet, 4 inches (13.3 meters)


High subsonic


Unlimited with air refueling


Internal weapons carriage

Two each of:

2 MK84 2000-pound
2 GBU-10 Paveway II
2 GBU-12 Paveway II
2 GBU-27 Paveway III
2 BLU 109
2 Mark 61

Unit Cost $FY98
[Total Program]

$122 million



Date Deployed



Active force, 54; ANG, 0; Reserve, 0

Primary Mission Aircraft Inventory


Only combat-coded aircraft and not development/ test, attrition reserve, depot maintenance, or training aircraft.

36 aircraft

VRML 3-D Model

F-117A Nighthawk
VRML by Soji Yamakawa



F-117 Web Sites: (photos)  (photos)   (slide show)

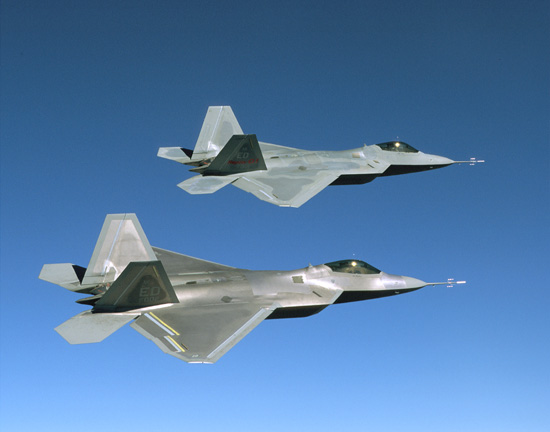

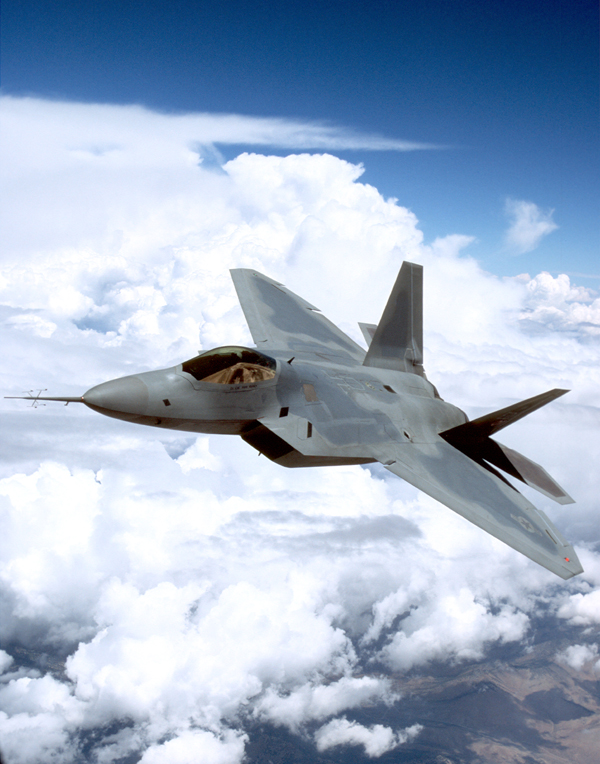

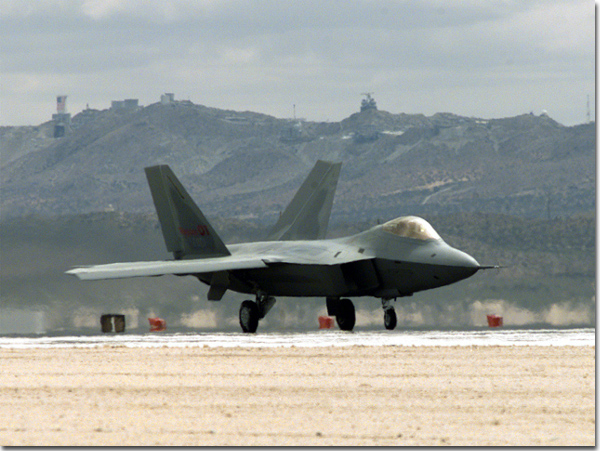

F-22 Raptor


Primary function: Fighter/attack

Speed: high supersonic


Replaces: F4, F111, F15

Wingspan: 44 feet 6 inches

Length: 62 feet 1 inch

Height: 16 feet 5 inches

Powerplant: two F119-100 from Pratt and Whitney

Thrust: 156 kN

Auxiliary power unit: G250, 335 kW Allied Signal Aerospace

Weapons: M61A2 Vulcan Cannon
AIM-9M Sidewinder missile
AIM-120 AMRAAM Advanced Medium Range Anti-Air Missile
Joint Direct Attack Munition


F-22 Video


  The F-22 is being developed to counter the  increasing sophistication and threat of hostile air forces and integrated air defense systems in use around the world. This fighter will provide air dominance and a precision ground attack  capability for US forces well into the 21st century.
